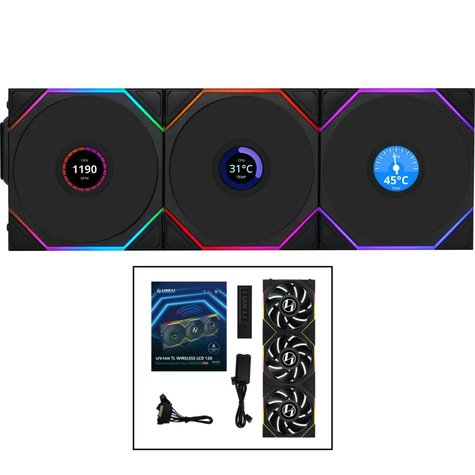

Lian Li UNI FAN TL Wireless LCD 120 ARGB Fan

Details

Lian Li

L-Wireless Sync supported (required for use)
UNIFAN interlocking system for streamlined cable management
Available in two versions: LED and LCD (mixable in a single cluster)
Two light zones for an enhanced visual experience
Full software control for fan speed, lighting effects, and LCD screen display via L-Connect 3
Noise-optimized and performance-oriented fan.
LCP (liquid crystal polymer) fan blades are used for tight tolerance.

Elevate the PC setup with the UNI FAN TL wireless LCD and non-LCD version. Two sizes: 120mm and 140mm fans are available in black and white, with options for standard and reverse blade configurations meeting all kinds of needs.

Note: The fan is slightly wider and thicker that standard 120mm fans at 120x124x28mm, and 140mm fans at 140x142x28mm. Please ensure your PC chassis is compatible.

Note: TL 140mm fans are only available in single packs.

Note: A compatible controller is required for the 120 mm and 140 mm single packs and must be purchased separately.

WIRELESS TRANSMISSION, EASY INSTALLATION

By adopting 2.4GHz wireless technology, the UNI FAN TL Wireless Series eliminates the need for traditional hub connections, significantly simplifying the installation process and enhancing user experience.

L-Wireless Controller

INNOVATIVE L-WIRELESS CONTROLLER

Instead of using the traditional connection method, the L-Wireless Sync Controller controls both lighting and fan speeds without connecting the cable to the controller.
The fans can be powered via a 4-PIN fan header on the motherboard or a SATA power cable.
For the LCD versions, a USB 2.0 9-PIN cable connection to the motherboard is required to set the LCD screen.

Connect to motherboard USB Type A Port.

The LCD and non-LCD versions use different receivers. For mixed clusters, use the LCD version receiver.

Reciever for LCD version

Reciever for non-LCD version

Each fan group requires connection to either a 12V PWM header or a 1-to-3 SATA splitter cable.

UNI FAN TL Wireless: PWM cable powers the LED and motor.
UNI FAN TL LCD Wireless: PWM cable powers the LED and motor; USB cable transmits LCD signals and provides LCD power.

Note: The controller includes the SATA power cable shown below.When using two or more fans, it is recommended to connect the SATA cable for stable power delivery.

The cable length can be shortened with the organizer on the receiver.

The transmission logic between the USB port and the LCD has been optimized, enabling the use of an additional USB splitter cable to the USB 2.0 or 3.0 port on the motherboard:

USB splitter cable without SATA for additional power (e.g., LIAN LI USB 2.0 1-to-3 HUB): Supports up to 6 TL LCD wireless fans.
USB splitter cable with SATA for additional power (e.g., LIAN LI Edge hub): Supports up to 9 TL LCD wireless fans.
Furthermore, a single motherboard can support up to 20 UNI FAN TL LCD wireless fans.

LIAN LI Edge Hub

Note: The EDGE HUB is only included with the EDGE Gold 1000W and 1200W PSUs, and must be powered via an additional PCIe 8-pin cable or connected directly to an EDGE Gold unit. Users building with other power supplies will need to purchase the EDGE HUB separately.

ONE CONTROLLER FOR ALL

The L-Wireless Controller supports UNI FAN TL Wireless, UNI FAN SL Wireless, Strimer Wireless, and more future products.

Note: UNI FAN TL Wireless Series’ receiver is compatible with the UNI FAN SL Wireless series.

The L-Wireless Controller can transmit signals to up to 10 channels.

Each group of wireless fans occupies one channel, while each Strimer Wireless uses an additional channel.
When all 10 channels are connected to the UNI FAN TL (non-LCD) wireless, the L-Wireless Controller can manage up to 40 fans at a time.
In the future, the L-Wireless Controller will also be compatible with more LIAN LI wireless devices. With this controller, you can create a stunning and streamlined LIAN LI ecosystem that combines beauty and simplicity!

PERSONALIZED REMIX, STYLE ON DISPLAY

UNI FAN TL Wireless and TL LCD wireless now can be mix-matched into a group, offering versatile configurations and empowering creativity.

L-Wireless controller configurations:

A group of 4 fans:
LCD x 2 + LED x 2
LCD x 3 + LED x 1
LED x 4
A group of 3 fans:
LCD x 3

PRACTICAL AND STYLISH LCD SCREEN

The UNI FAN TL LCD Wireless carries forward the legacy of the world’s first LCD-equipped fan. It features a 1.6” circular LCD screen with 60Hz refresh rate (upgraded from 30Hz) that integrates seamlessly with LIAN LI’s L-Connect 3 software, offering exceptional customizability.

● 1.6” LCD

● 60HZ Refresh Rate

● 400×400 resolution

● 500 nits brightness

● sRGB 24-bit

● IPS TYPE DISPLAY

PERFORMANCE DETAIL AT A GLANCE

Monitor CPU and GPU temperature and load with new built-in animated hardware sensors displayed directly on the screen.For clusters of 3 LCD fans, multiple data points can be displayed simultaneously.

Compared to TL LCD V1 (wired version),
CPU usage while using sensor is significantly reduced.

CPU Load Test:
Number of TL LCD: 6
CPU Model: i7-12700F
Test System: Windows 10 22H2

UPLOAD YOUR STYLE

Achieve a completely personalized system style by uploading MP4/GIF/JPG/PNG files to customize the LCD screen.

UPLOAD YOUR STYLE

Achieve a completely personalized system style by uploading MP4/GIF/JPG/PNG files to customize the LCD screen.

COMBINATION OF PERFORMANCE AND AESTHETICS

UNI FAN TL Wireless 140

UNI FAN TL Wireless 140 Reversed

UNI FAN TL Wireless 120

The UNI FAN TL Wireless uses LCP material for fan blades, a copper center shaft, and FDB bearings with 9 tightly aligned blades (0.65mm gap), ensuring a striking look without compromising on performance.

The UNI FAN TL Wireless offers performance on par with the UNI FAN P28, the top performer in the UNI FAN lineup.

SOPHISTICATED CONTINUOUS RGB LIGHTING

Each UNI FAN TL Wireless series fan has 26 LEDs with a wide infinity mirror on the 2 sides of the fan frame that wraps around the edges of the anti-vibration pad.

SEAMLESS SOFTWARE

Able to set different fan speeds for each fan cluster to optimize different scenarios of use providing flexibility for radiator or case fan needs with L-Connect 3.

L-Connect 3 offers a variety of features, such as grouping, naming, and sorting fans for more intuitive management, providing diverse functionality and user-friendly design.

Note: If the PWM cable connects to the motherboard, switch the corresponding fan header to PWM mode in the BIOS. This step is unnecessary when using a PWM-SATA adapter.
